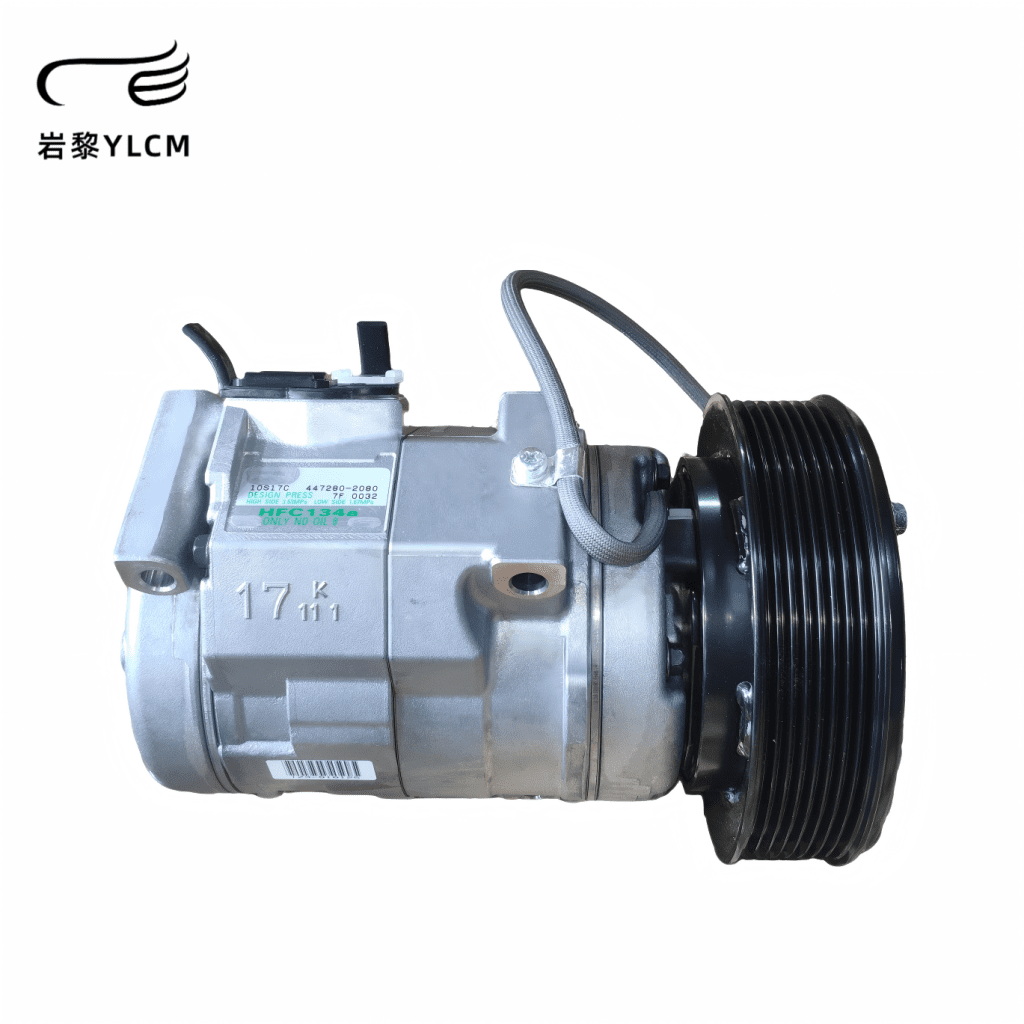

Direct replacement for CAT W345C MH and W345C models (Part No. 305-0325)
10-cylinder cast aluminum body designed for durability and efficiency
Operates at 24V DC with R134a refrigerant, suitable for high-demand HVAC systems
Designed to maintain oil flow rate and increase pressure required for continuous application
Broad compatibility across CAT excavators, material handlers, and marine/industrial equipment
| Parameter | Description |
| Part Number | 305-0325 COMPRESSOR |
| Compatible Models | CAT W345C MH, W345C, 324D, 345C, M325D MH |
| Material | Cast Aluminum Body (Alloy Aluminum) |
| Type | 10 Cylinder Compressor |
| Clutch Voltage | 24 VDC |
| Drive Belt Type | V-Shaped (8 Ribs) |
| Refrigerant | R134a |
| Maximum RPM | 6000 (Continuous) |
| Connector Type | 2-pin Ampseal |
| Weight | 7.0 KG |
| Outer Diameter (in) | 5.7 |
| Total Length (in) | 8.5 |
| Warranty | 6 Months |
Ensure optimal heating and cooling in your CAT cab with the 305-0325 Compressor. Order today to restore efficient HVAC function and maintain operator comfort in heavy-duty environments!
Q: Which CAT models is this compressor designed for?
A: It is designed for CAT W345C MH and W345C models, and is also compatible with 324D, 345C, and M325D MH.
Q: What is the physical structure of the compressor?
A: It is a 10-cylinder compressor with a durable cast aluminum body.9
Q: How long is the warranty?
A: We provide a 6-month warranty, which includes technical support.
Q: What is the shipping time?
A: Since lead time information was not provided, please inquire for the specific shipping time for in-stock and production orders.
Q: Do you accept payments other than rubles?
A: Yes, in addition to ruble payments via VTB Bank, other payment options are also available upon request.
